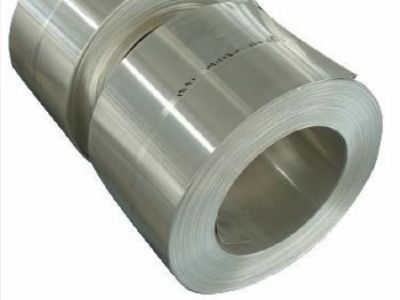

Copper Nickel Strip

Copper-Nickel, also known as Cupro-Nickel, can withstand seawater corrosion,
erosion and bio-fouling. It is therefor widely used in marine and offshore industries.

Global Metals provides a full range of cupro-nickel products for almost any application. Our cupro-nickel strip, coil, foil, bar, rod, pipe, plate, sheet, tube and other profiles are produced in a wide variety of alloys, including clad composites. They can be produced in standard dimensions or custom made to your requirements. Our cupro-nickel products are manufactured in compliance with the main international specifications, and tighter tolerances are available upon request. We offer various platings and coatings, edge conditioning, special surface conditions, profiled strip, and multiple packaging options to meet our customers’ requirements.  The following is a summary of our production capabilities. Our aluminum strip can be produced in standard dimensions or custom made to your requirements. We produce both imperial and metric units..

Alloys

ASTM Trade Name EN / DIN
C70600 Cupro-Nickel 706 (90/10)
C71500 Cupro-Nickel 715 (70/30)
Other Alloys available upon request

Clad Composites

  • Composites

Thickness

Min. Gauge 0.006" 0.15mm For thinner gauges see Link
Max. Gauge 0.250" 6.35mm For thicker gauges see Link

Width

Min. Width 0.125" 3mm For narrower widths see Link
Max. Width 48.00" 1,220mm

Tolerances

  • Bullet 1

Specifications

Manufactured in compliance with the main international specifications and standards including: ASTM, EN, and DIN. Our brass strip can also be manufactured to meet the requirements of other international standards, including: ASME, SAE, MIL, QQ, ISO, BS, and JIS.

Surface Finishes

  • Blanking
    Cladding
    Cleaning
    Coating
    Cut-to-Length
    Cut-to Specifications
    Deburring
    Edge Conditioning
    Electroplating
    Forming
    Hot dip tinning
    Milling
    Painting
    Plating
    Polishing
    Precision Slitting
    Punching
    Shearing
    Slitting
    Stamping
    Traverse Winding

Applications

  • Boat Hulls
  • Crankshafts
  • Heat Exchangers
  • Marine Hardware
  • Piping
  • Sea Water Systems
  • Ship Propellers

Packaging

Pancake Coils

  • Up to 500 PIW (pounds per inch of width)
  • Horizontal or vertical axis packaging available
  • Wooden Pallets or Crates

Level Wound Coils

  • Up to 3,000 lbs.
  • Gauge range from .007" to .065" 0.18 mm to 1.65 mm
  • Width range from .200" to 2.35" 5 mm to 60 mm

Multi Coils

A stack of coils joined together to produce a long strip when decoiled on a horizontal decoiler. This allows the operator to process an entire stack of coils in one procedure.

Custom Packaging

Custom packaging, coil weights, inner diameters and outer diameters are available upon request
