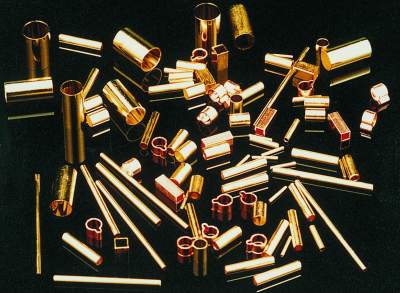

Brass Tubes
Brass Tubing is cut, bent, shaped and twisted for specific applications. Global Metals provides a full range of brass products for almost any application. Our strip, coil, foil, bar, rod, pipe, plate, sheet, tube and other profiles are produced in a wide variety of alloys, including clad composites. They can be produced in standard dimensions or custom made to your requirements. Our brass products are manufactured in compliance with the main international specifications, and tighter tolerances are available upon request. We offer various platings and coatings, edge conditioning, special surface conditions, profiled strip, and multiple packaging options to meet our customers requirements. The following is a summary of our production capabilities. Our aluminum strip can be produced in standard dimensions or custom made to your requirements. We produce both imperial and metric units.
Alloys
ASTM |
Trade Name |
EN / DIN |
C21000 |
Gilding Metal |
CuZn5 |
C22000 |
Commercial Bronze |
CuZn10 |
C22600 |
Jewelry Bronze |
|
C23000 |
Red Brass |
CuZn15 |
C24000 |
Low Brass |
CuZn20 |
C25600 |
|
CuZn28 |
C26000 |
Cartridge Brass |
CuZn30 |
C26130 |
Arsenical Brass |
CuZn30As |
C26800 |
Yellow Brass |
CuZn33 |
C27000 |
Yellow Brass |
CuZn35 |
C27200 |
Yellow Brass |
CuZn36 |
C27400 |
Yellow Brass |
CuZn37 |
C28000 |
Muntz Metal |
CuZn40 |
C33500 |
Low Leaded Brass |
CuZn36Pb0.5 |
C35300 |
High Leaded Brass |
CuZn37Pb2 |
C35600 |
Extra High Leaded Brass |
CuZn37Pb3 |
C42200 |
Tin Brass |
|
C42500 |
Tin Brass |
CuSn3Zn9 |
Other Alloys available upon request |
Clad Composites
Thickness
Min. Gauge |
0.006" |
0.15mm |
For thinner gauges see Link |
Max. Gauge |
0.250" |
6.35mm |
For thicker gauges see Link |
Width
Min. Width |
0.125" |
3mm |
For narrower widths see Link |
Max. Width |
48.00" |
1,220mm |
|
Tolerances
Specifications
Manufactured in compliance with the main international specifications and standards including: ASTM, EN, and DIN. Our brass strip can also be manufactured to meet the requirements of other international standards, including: ASME, SAE, MIL, QQ, ISO, BS, and JIS.
Surface Finishes
Anodizing
Beading
Bending
Cladding
Cleaning
Coating
Cold Forming
Cut-to-Length
Deburring
Edge Conditioning
Flaring
Forming
Machining
Painting
Threading
