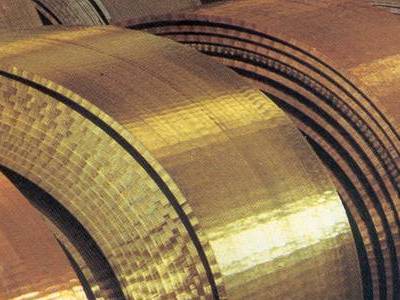

Bronze Strip

Global Metals provides a full range of precision bronze strip for almost any application.  Our bronze strip is produced in a wide variety of brass alloys, including clad composites.  It can be produced in standard dimensions or custom made to your requirements.  Our strip is manufactured in compliance with the main international specifications, and tighter tolerances are available upon request.  We offer various platings and coatings, edge conditioning, special surface conditions, profiled strip, and multiple packaging options to meet our customers’ requirements.  The following is a summary of our production capabilities. Our aluminum strip can be produced in standard dimensions or custom made to your requirements. We produce both imperial and metric units.



Alloys

ASTMTrade NameEN / DIN
C22000Commercial BronzeCuZn10
C22600Jewelry Bronze
C31400Leaded Bronze
C38500.Architectural Bronze
C50500Bronze 505
C51000Phosphor Bronze
C51100Bronze 511
C51900Bronze 519
C52100Bronze 521
C52400Bronze 524
C63000Aluminum Bronze
C65500Silicon Bronze
C86300Manganese Bronze
C90300G Bronze
C94700Bearing Bronze
C90500Gunmetal
C92200Navy "M" Bronze
C93200  Bearing Bronze
Other Alloys available upon request

Clad Composites

  • Composites

Thickness

Min. Gauge0.006"0.15mmFor thinner gauges see Link
Max. Gauge0.250"6.35mmFor thicker gauges see Link

Width

Min. Width0.125"3mmFor narrower widths see Link
Max. Width48.00"1,220mm

Tolerances

Our bronze strip is manufactured in compliance with the main international specifications.  Tighter tolerances are available upon request. Custom tempers are available upon request.

Specifications

Manufactured in compliance with the main international specifications and standards including: ASTM, EN, and DIN. Our brass strip can also be manufactured to meet the requirements of other international standards, including: ASME, SAE, AMS, AWS, FED, MIL, QQ, ISO, BS, AFNOR and JIS.

Surface Finishes

Oil-free surface
Electro plating
Hot-dip tin plating
Deburred or rounded edges
Bright and polished surfaces
Strip with protective coatings
Profiled strip by either milling or stamping

Applications

  • Boat Hulls
  • Crankshafts
  • Heat Exchangers
  • Marine Hardware
  • Piping
  • Sea Water Systems
  • Ship Propellers

Packaging

Pancake Coils

  • Up to 500 PIW (pounds per inch of width)
  • Horizontal or vertical axis packaging available
  • Core types:  Fiber, Aluminum, Steel, Plastic
  • Inner diameter (ID) as required
  • Outside diameter (OD) as required
  • Inserts as required
  • Separators as required
  • Wooden Pallets or Crates

Custom Packaging

Custom packaging, coil weights, inner diameters and outer diameters are available upon request.
