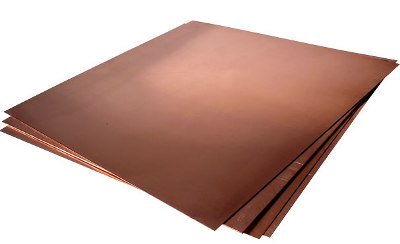

Bronze Foil

Global Metals provides a full range of precision bronze foil for almost any application.  Our bronze foil is produced in a wide variety of bronze alloys, including clad composites.  It can be produced in standard dimensions or custom made to your requirements.  Our foil is manufactured in compliance with the main international specifications, and tighter tolerances are available upon request.  We offer various platings and coatings, edge conditioning, special surface conditions, profiled foil, and multiple packaging options to meet our customers’ requirements.  The following is a summary of our production capabilities. Our aluminum strip can be produced in standard dimensions or custom made to your requirements. We produce both imperial and metric units.

Alloys

ASTM Trade Name EN / DIN
C22000 Commercial Bronze CuZn10
C22600 Jewelry Bronze
C31400 Leaded Bronze
C38500. Architectural Bronze
C50500 Bronze 505
C51000 Phosphor Bronze
C51100 Bronze 511
C51900 Bronze 519
C52100 Bronze 521
C52400 Bronze 524
C63000 Aluminum Bronze
C65500 Silicon Bronze
C86300 Manganese Bronze
C90300 G Bronze
C94700 Nickel Tin Bronze
C90500 Gunmetal
C92200 Navy "M" Bronze
C93200 Bearing Bronze
Other Alloys available upon request

Clad Composites

  • Composites

Thickness

Min. Gauge 0.0002" 0.005mm
Max. Gauge 0.006" 0.150mm For thicker gauges see Bronze Strip

Width

Min. Width 0.032" 0.8mm xxxxxxxxxxxxxxxxxxxxxxxxxx
Max. Width 48.00" 1,220mm  For narrower widths see Bronze Wire

Tolerances

Our bronze foil is manufactured in compliance with the main international specifications.
Tighter tolerances are available upon request.
Custom tempers are available upon request.

Specifications

Manufactured in compliance with the main international specifications and standards including: ASTM, EN, and DIN. Our brass strip can also be manufactured to meet the requirements of other international standards, including: ASME, SAE, AMS, AWS, FED, MIL, QQ, ISO, BS, AFNOR and JIS.

Surface Finishes


Oil-free surface
Electro plating
Hot-dip tin plating
Deburred or rounded edges
Bright and polished surfaces
Foil with protective coatings
Profiled foil by either milling or stamping

Applications

  • Diamond Cutting Tools
  • Electrical Components
  • Hard Solder Foils

Packaging

Pancake Coils

  • Up to 500 PIW (pounds per inch of width)
  • Horizontal or vertical axis packaging available
  • Core types:  Fiber, Aluminum, Steel, Plastic
  • Inner diameter (ID) as required
  • Outside diameter (OD) as required
  • Inserts as required
  • Separators as required
  • Wooden Pallets or Crates

Custom Packaging

Custom packaging, coil weights, inner diameters and outer diameters are available upon request.
