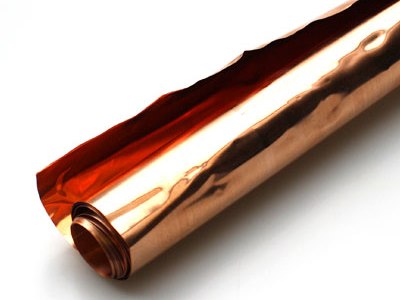

Copper Foil

Global Metals provides a full range of precision copper foil for almost any application.  Our copper foil is produced in a wide variety of copper alloys, including clad composites.  It can be produced in standard dimensions or custom made to your specific requirements.  Our copper foil is manufactured in compliance with the main international specifications, and tighter tolerances are available upon request.  We offer various platings and coatings, edge conditioning, special surface conditions, profiled foil, and multiple packaging options to meet our customers’ requirements.  The following is a summary of our production capabilities. Our aluminum strip can be produced in standard dimensions or custom made to your requirements. We produce both imperial and metric units.

Alloys

ASTM Trade Name EN / DIN
C10100 Oxygen-Free Electronic  Cu-OFE
C10200 Oxygen-Free, without residual deoxidants   Cu-OF
C10300 Oxygen-Free, extra low phosphorous  Cu-OFXLP
C10400 Oxygen-Free with Ag  Cu-OFS
C10500 Oxygen-Free with Ag  Cu-OFS
C10700 Oxygen-Free with Ag  Cu-OFS
C11000 Electrolytic Tough Pitch Cu-ETP
C11300 Touch Pitch with Ag Cu-STP
C12000 Deoxidized, Low Phosphorus Cu-DLP
C12200 Deoxidized, High Phosphorus Cu-DHP
C14300 Cadmium Copper, Deoxidized
C14420 Telurium-Bearing Copper
C14530  Telurium-Bearing Copper
C19210 Iron-Bearing Copper
C19400 Iron-Bearing Copper CuFe2P
Other Alloys available upon request

Clad Composites

Copper Alloy & Aluminum
Copper Alloy & Copper Alloy
Copper Alloy & Steel

Thickness

Min. Gauge 0.006" 0.15mm
Max. Gauge 0.250" 6.35mm For thicker gauges see Copper Strip

Width

Min. Width 0.125" 3mm For narrower widths see Copper Wire
Max. Width 48.00" 1,220mm

Tolerances

Our copper coil is manufactured in compliance with the main international specifications.
Tighter tolerances are available upon request.
Custom tempers are available upon request.

Specifications

Manufactured in compliance with the main international specifications and standards including:  ASTM, EN, and DIN.
Our copper foil can also be manufactured to meet the requirements of other international standards, including:  ASME, SAE, AMS, AWS, FED, MIL, QQ, ISO, BS, AFNOR and JIS.

Surface Finishes

Oil-free surface
Electro plating
Hot-dip tin plating
Deburred or rounded edges
Bright and polished surfaces
Coil with protective coatings
Profiled strip by either milling or stamping

Applications

  • Architecture
  • Automotive
  • Bonding applications
  • Building hardware
  • Cable wrap shielding
  • Circuit boards
  • Coaxial cables
  • Commutators
  • Connectors
  • Construction materials
  • Cylinder cups
  • Decorative items
  • Electrical applications
  • Eletronics
  • Electrotechnical appliances
  • Environmental technology
  • Evaporators
  • Gas heaters
  • General engineering
  • Heat exchangers
  • Heat sinks
  • Heaters
  • High frequency data transmission
  • Hose couplings
  • Household appliances
  • HVAC/R
  • Industrial applications
  • Industrial controls
  • Lead frames
  • Medical instruments
  • Oil coolers
  • Printed circuits
  • Radiators
  • RF cables
  • Semi conductors
  • Solar technology
  • Stamping
  • Telecommunications
  • Terminals
  • Transformers
  • Vacuum interrupters
  • Wiring devices

Packaging

Pancake Coils

  • Up to 500 PIW (pounds per inch of width)
  • Horizontal or vertical axis packaging available
  • Core types:  Fiber, Aluminum, Steel, Plastic
  • Inner diameter (ID) as required.
  • Outside diameter (OD) as required.
  • Inserts as required.
  • Seperators as required.
  • Wooden Pallets or Crates

Custom Packaging

Custom packaging, coil weights, inner diameters, and outer diameters are available on request.
