Copper Coil

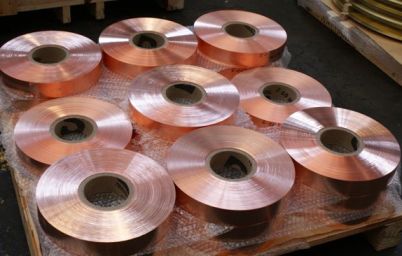

Global Metals provides a full range of precision copper coil for almost any application.  Our copper coil is produced in a wide variety of copper alloys, including clad composites.  It can be produced in standard dimensions or custom made to your specific requirements.  Our copper coil is manufactured in compliance with the main international specifications, and tighter tolerances are available upon request.  We offer various platings and coatings, edge conditioning, special surface conditions, profiled coil, and multiple packaging options to meet our customers’ requirements.  The following is a summary of our production capabilities. Our aluminum strip can be produced in standard dimensions or custom made to your requirements. We produce both imperial and metric units.

Alloys

ASTM Trade Name EN / DIN
C10100 Oxygen-Free Electronic  Cu-OFE
C10200 Oxygen-Free, without residual deoxidants  Cu-OF
C10300 Oxygen-Free, extra low phosphorous   Cu-OFXLP
C10400  Oxygen-Free with Ag  Cu-OFS
C10500  Oxygen-Free with Ag   Cu-OFS
C10700  Oxygen-Free with Ag    Cu-OFS
C11000 Electrolytic Tough Pitch  Cu-ETP
C11300 Touch Pitch with Ag  Cu-STP
C12000 Deoxidized, Low Phosphorus   Cu-DLP
C12200 Deoxidized, High Phosphorus   Cu-DHP
C14300 Cadmium Copper, Deoxidized
C14420 Telurium-Bearing Copper
C14530 Telurium-Bearing Copper
C19210 Iron-Bearing Copper
C19400 Iron-Bearing Copper CuFe2P
Other Alloys available upon request

Clad Composites

Copper Alloy & Aluminum
Copper Alloy & Copper Alloy
Copper Alloy & Steel

Thickness

Min. Gauge 0.006" 0.15mm For thinner gauges see Copper Foil.
Max. Gauge 0.250" 6.35mm For thicker gauges see Copper Plate.

Width

Min. Width 0.125" 3mm For narrower widths see Copper Strip.
Max. Width 48.00" 1,220mm

Tolerances

Our copper coil is manufactured in compliance with the main international specifications.  Tighter tolerances are available upon request.  Custom tempers are available upon request.

Specifications

Manufactured in compliance with the main international specifications and standards including:  ASTM, EN, and DIN.
Our copper coil can also be manufactured to meet the requirements of other international standards, including:  ASME, SAE, AMS, AWS, FED, MIL, QQ, ISO, BS, AFNOR and JIS.

Surface Finishes

Oil-free surface
Electro plating
Hot-dip tin plating
Deburred or rounded edges
Bright and polished surfaces
Coil with protective coatings
Profiled coil by either milling or stamping


Applications

  • Architecture
  • Automotive
  • Boilers
  • Bonding applications
  • Building and construction
  • Cable wrapped shielding
  • Caskets
  • Charge air coolers
  • Circuit boards
  • Circuit breakers
  • Coaxial Cables
  • Commutators
  • Condensers
  • Connectors
  • Construction materials
  • Cylinder Cups
  • Decorative items
  • Deep drawing
  • Domestic heating
  • Electrical applications
  • Electronics
  • Electrotecnical appliances
  • Environmental technology
  • Evaporators
  • Gas heaters
  • General engineering
  • Heat Exchangers
  • Heat sinks
  • Heaters
  • High frequency data transmission
  • Hose couplings
  • Household appliances
  • HVAC/R
  • Industrial applications
  • Industrial controls
  • Lead Frames
  • Medical instruments
  • Oil coolers
  • Plate heat exchangers
  • Printed Circuits
  • Radiators
  • RF cables
  • Semi conductors
  • Solar panels
  • Solar technology
  • Stamping
  • Submarine cables
  • Telecommunications
  • Terminals
  • Transformers
  • Vacuum interrupters
  • Wiring devises

Packaging

Standard Packaging

  • Horizontal or vertical axis packaging available
  • Core types:  Fiber, Aluminum, Steel, Plastic
  • Inner Diameter (ID) as required
  • Outer Diameter (OD) as required
  • Inserts as required
  •  Wooden Pallets or Crates

Custom Packaging

Custom packaging, coil weights, inner diameters and outer diameters are available upon request.
