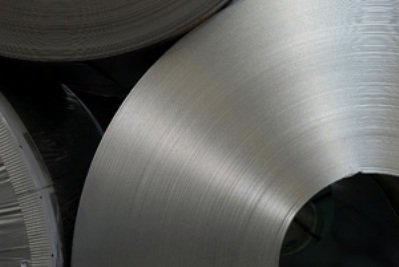

Nickel-Silver Coil

Other common names for nickel-silver alloy are: new silver German silver, paktong, and alpacca (or alpaca). It is both corrosion resistance and has high electrical resistance. Excellent cold forming good machineability and welding characteristics.

Global Metals provides a full range of nickel-silver products for almost any application. Our strip, coil, foil, bar, rod, pipe, plate, sheet, tube and other profiles are produced in a wide variety of alloys, including clad composites. They can be produced in standard dimensions or custom made to your requirements. Our nickel-silver products are manufactured in compliance with the main international specifications, and tighter tolerances are available upon request. We offer various platings and coatings, edge conditioning, special surface conditions, profiled strip, and multiple packaging options to meet our customers’ requirements. The following is a summary of our production capabilities.

Alloys

ASTM Trade Name EN / DIN
C73500 Nickel Silver 735
C75200  Nickel Silver 752
C76200  Nickel Silver 762
C77000 Nickel Silver 770
C79600 Nickel Silver 796 (Leaded)
Other Alloys available upon request

Clad Composites

  • Composites

Thickness

Min. Gauge 0.006" 0.15mm For thinner gauges see Link
Max. Gauge 0.250" 6.35mm For thicker gauges see Link

Width

Min. Width 0.125" 3mm For narrower widths see Link
Max. Width 48.00" 1,220mm

Tolerances

  • Bullet 1

Specifications

Manufactured in compliance with the main international specifications and standards including: ASTM, EN, and DIN. Our brass strip can also be manufactured to meet the requirements of other international standards, including: ASME, SAE, MIL, QQ, ISO, BS, and JIS.

Surface Finishes

Blanking
Cladding
Cleaning
Coating
Cut-to-Length
Cut-to Specifications
Deburring
Edge Conditioning
Electroplating
Forming
Hot dip tinning
Milling
Painting
Plating
Polishing
Precision Slitting
Punching
Shearing
Slitting
Stamping
Traverse Winding

Applications

  • Costume Jewellery
  • Electroplated Wares  (Epns)
  • Heating Coils
  • Housewares
  • Keys
  • Musical Instruments
  • Marine Fittings
  • Plumbing Fixtures
  • Silver Plated Cutlery
  • Zippers

Packaging

Pancake Coils

  • Up to 500 PIW (pounds per inch of width)
  • Horizontal or vertical axis packaging available
  • Wooden Pallets or Crates

Level Wound Coils

  • Up to 3,000 lbs.
  • Gauge range from .007" to .065" 0.18 mm to 1.65 mm
  • Width range from .200" to 2.35" 5 mm to 60 mm

Multi Coils

A stack of coils joined together to produce a long strip when decoiled on a horizontal decoiler. This allows the operator to process an entire stack of coils in one procedure.

Custom Packaging

Custom packaging, coil weights, inner diameters and outer diameters are available upon request
